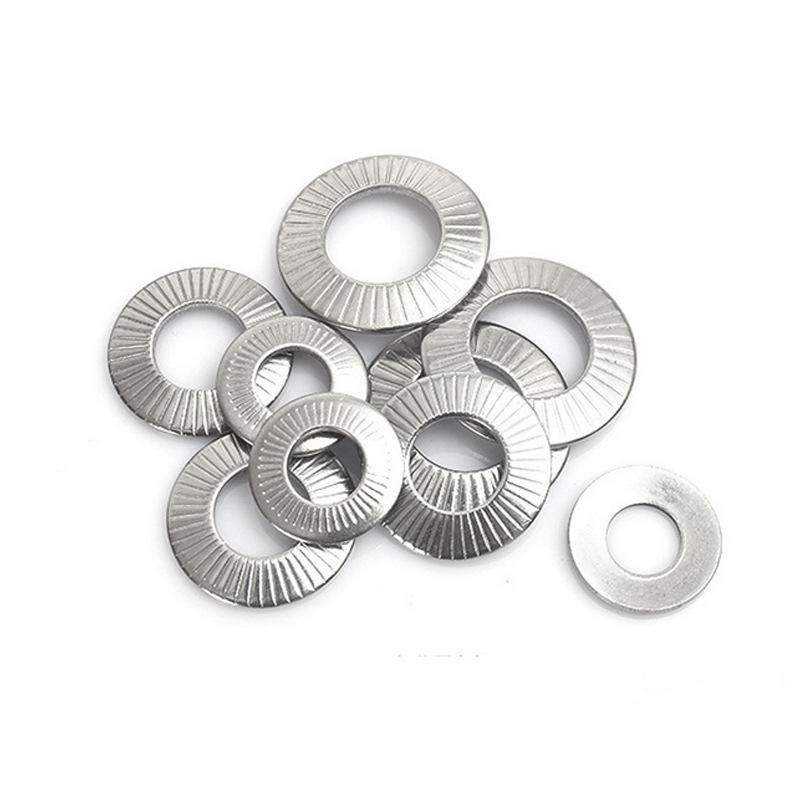

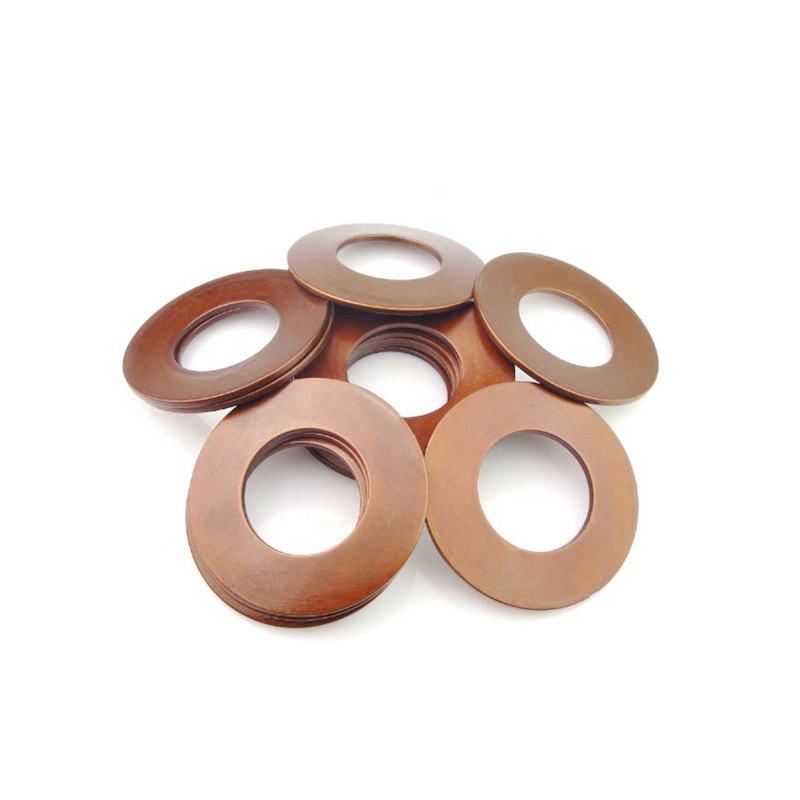

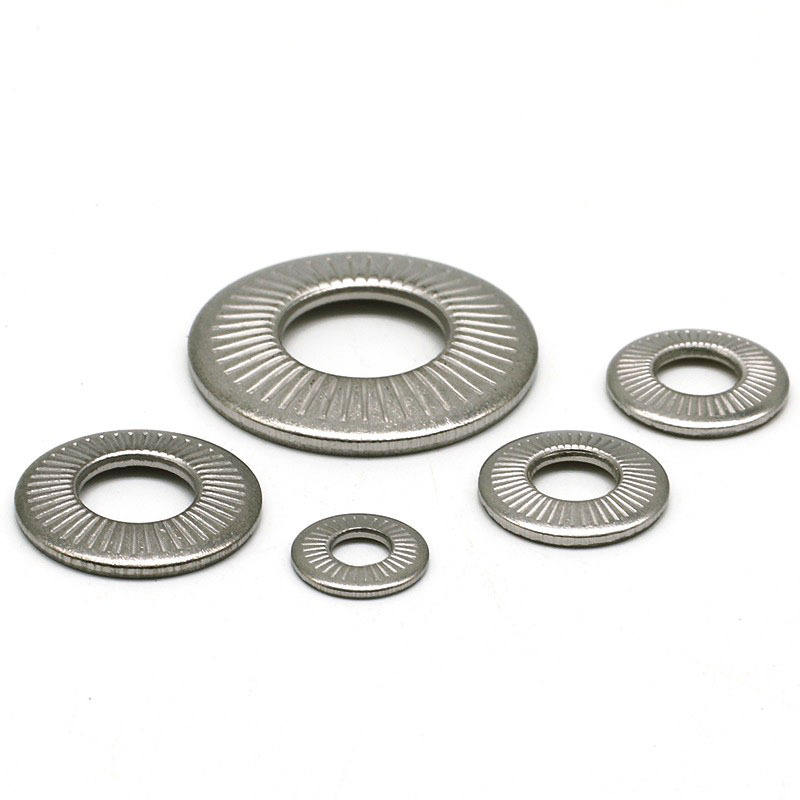

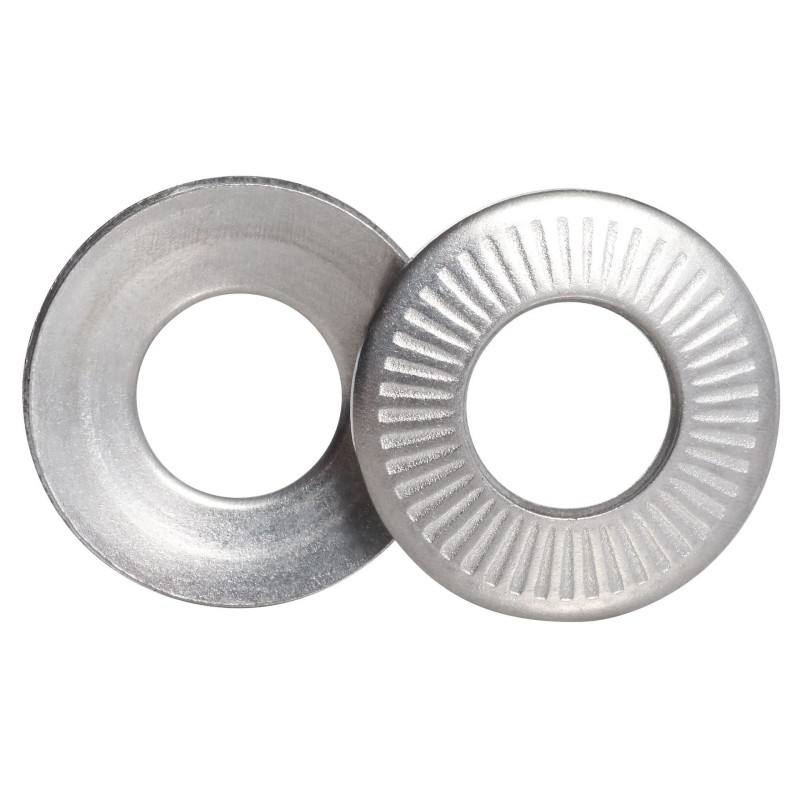

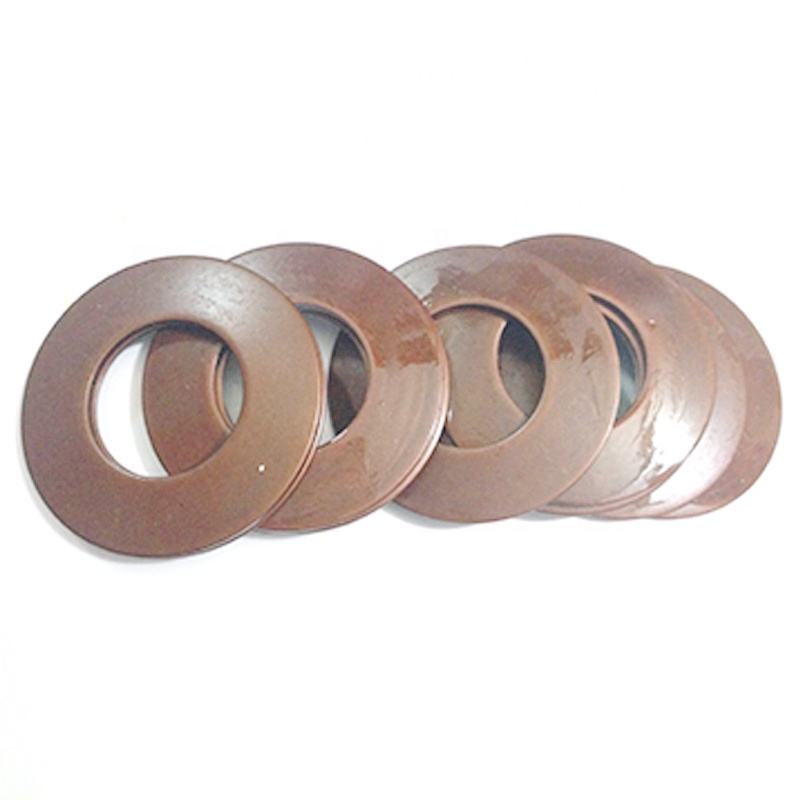

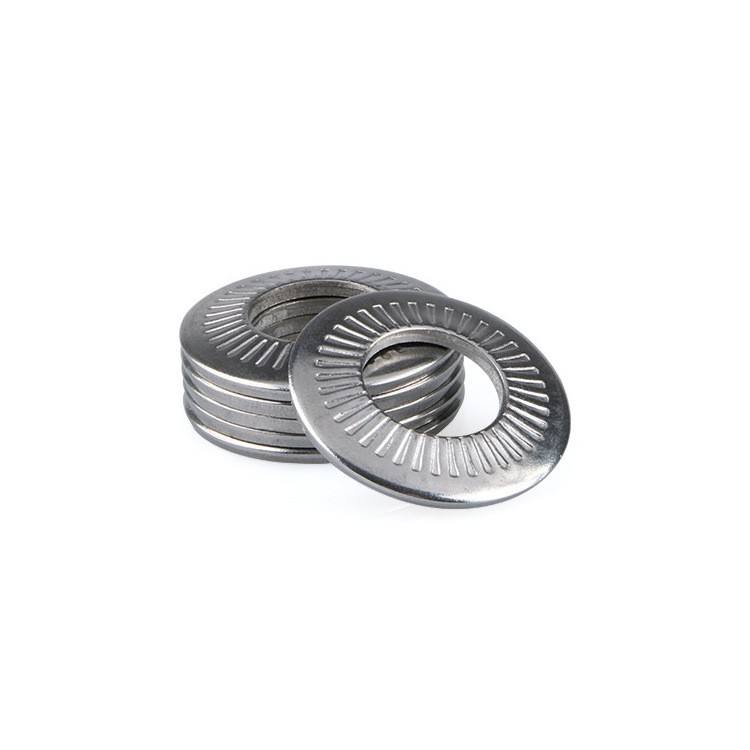

Conical Lock Washer

Conical Spring Lock Washer

Material:

• Spring steel (e.g., 65Mn, 70Cr) or stainless steel (AISI 304/316) for high elasticity and strength.
• Surface treatments: Zinc plating, phosphating, or galvanization for corrosion resistance.

Manufacturing Process:

1. Stamping/Punching: Cut and form metal sheets into conical shapes.
2. Heat Treatment: Quenching and tempering to achieve elasticity and hardness (HRC 40–50).
3. Surface Coating: Apply anti-corrosion layers via electroplating or chemical treatment.
4. Deburring: Smooth edges to prevent damage during installation.

Key Processing Points:

• Precise taper angle and thickness for consistent spring action.
• Uniform elasticity to maintain locking force under vibration.
• Avoid material brittleness during heat treatment.

Applications:

• Prevents loosening of bolts, nuts, and threaded fasteners in high-vibration environments.
• Used in automotive, heavy machinery, and construction equipment.
• Ideal for applications requiring high axial tension and vibration resistance.

Installation:

1. Place the washer tapered side toward the nut/bolt head to maximize tension.
2. Tighten the fastener to compress the washer and generate axial spring force.
3. Avoid over-torquing to prevent permanent deformation.

Standards: Complies with DIN 6796, ISO 10673, and ANSI B18.21.1, depending on type and region.
