Pins manufacturer in china: Precision Connections for Demanding Industrial Applications

1st December 2025

Pins manufacturer in china

As a manufacturer with decades of experience in the fastener industry, WJ Fastener is dedicated to providing high-performance, customized pin solutions based on the core principle of “Precise Connection, Reliable Load-Bearing.” Pins are indispensable fundamental components in mechanical systems, serving critical functions such as positioning, securing, locking, and transmitting loads.

Core Types & Functional Positioning, Chinese pin manufacturer

Pin design must match specific connection requirements. Adhering to international standards like GB/T 119.1-2000 and ISO 2338, we offer a comprehensive product matrix across 6 major pin categories, each optimized for specific scenarios:

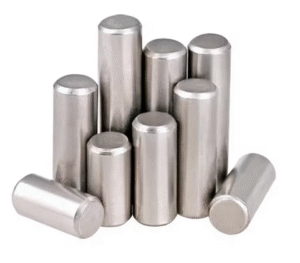

1. Parallel Pins (Cylindrical Pins)

Structure: Full circular cross-section, precision ground surface (h8/h9 tolerance), relies on interference fit (H7/s6) for axial fixation.

Core Function: High-precision positioning (repeatability ≤0.02mm), resistance to shear loads.

Typical Applications: Mold guide pillar positioning, machine tool fixture component fixation, gearbox shaft end rotation prevention.

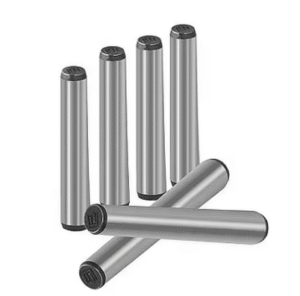

2. Taper Pins

Pin producer in China

Structure: 1:50 taper design, head with internal thread or slot, achieves self-centering via tapered tight fit (H7/t6).

Key Advantage: Easy installation (tight fit via tapping), adjustable tightness during disassembly, offers better reusability than parallel pins.

Ideal For: Mechanical interfaces requiring frequent assembly/disassembly (e.g., agricultural machinery linkages, automation equipment module docking).

3. Split Pins (Cotter Pins)

Manufacturer of pins in China

Structure: U-shaped split design, ends can be bent open to prevent loosening, often used with bolts/nuts/slotted nuts.

Enhanced Features: Available in galvanized, Dacromet, stainless steel options, salt spray resistance up to 1000+ hours, improves anti-loosening reliability by 30%.

Common Uses: Automotive wheel hub bolt locking, railway vehicle brake linkage, outdoor power tower fastener security.

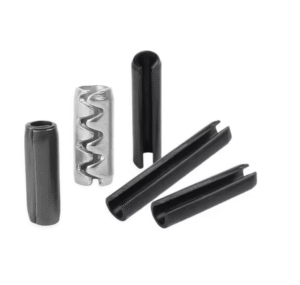

4. Spring Pins (Elastic Cylindrical Pins)

Manufacturing: Cold-wound or hot-wound spring steel (e.g., 65Mn), elastic deformation ≥3%, grips hole wall via radial tension.

Unique Value: Low requirement for hole machining precision (tolerates ±0.1mm), anti-vibration/loosening performance is twice that of standard parallel pins.

Recommended For: Vibrating components in construction machinery (e.g., excavator bucket pivot pins), rail bogie connections.

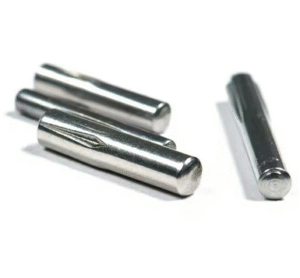

5. Grooved Pins

Innovative Design: 3-4 longitudinal grooves along the axis, grooves compress and expand upon insertion to lock into the hole wall, combines positioning and anti-rotation.

Material Options: Carbon steel or stainless steel, surface can be black oxide (rust prevention) or coated with Molybdenum disulfide (friction reduction).

Typical Applications: Agricultural machinery sprocket fixation, textile machinery roller anti-rotation connections.

6. Shear Pins

Design Logic: Engineered weak point via reduced cross-section (e.g., stepped, waisted) designed to fail at a predetermined load, protecting core equipment from overload damage.

Technical Advancement: FEA-optimized stress distribution, shear load tolerance ≤5%, exceeding the industry standard of 10%.

Critical Scenarios: Crane hook overload protection, mining machinery crusher shaft connections, wind turbine yaw brake redundancy design.

Material Selection: Balancing Performance and Cost

Material choice determines 80% of a pin’s performance. Our “Application-Performance-Material” matching system ensures the right fit:

Material Type	Typical Grades	Key Properties	Ideal Applications
Quality Carbon Steel	45# Steel, Q235	Moderate strength (500-600MPa Tensile), easy machining	General machinery positioning, non-corrosive environments
Alloy Structural Steel	40Cr, 35CrMo	High strength (≥1000MPa Tensile), fatigue resistance	Heavy-duty/impact scenarios (construction machinery pins)
Stainless Steel	304, 316L	Corrosion resistance (1000+ hr salt spray), non-magnetic	Food machinery, marine equipment, medical instruments
Copper Alloy	H62 Brass, Beryllium Copper	Good conductivity (~1.7μΩ·m), low friction	Electrical connector locking, low-friction connections
High-Temperature Alloy	Inconel 718	High-temperature resistance (80% strength retention @600°C)	Aerospace engine components, high-temperature furnace connections

Quality Control: All raw materials sourced from tier-1 suppliers (e.g., Baosteel, Tisco), with 100% incoming inspection for chemical composition (OES) and mechanical properties (tensile/impact tests) ensuring batch consistency.

5 Key Selection Factors: Technical Path from Need to Solution

As a professional Pins manufacturer in china, we follow a 5-step methodology – “Scenario Diagnosis -> Parameter Definition -> Material Matching -> Process Validation -> Standard Compliance” – for precise pin selection:

1. Define the Connection Function

High-Precision Positioning (e.g., molds, fixtures): Prioritize Parallel Pins (h8 tolerance) or Taper Pins (1:50 taper).

Locking / Easy Maintenance (e.g., outdoor equipment): Choose Split Pins (galvanized + corrosion coating) or Spring Pins (self-compensating tightness).

Overload Protection (e.g., lifting machinery): Select Shear Pins (designed to fail at 1.5x max working load).

2. Identify Load Type

Static Loads (e.g., structural fixes): Option for quenched/tempered 45# steel (28-32 HRC).

Dynamic/Impact Loads (e.g., construction machinery): Recommend surface-hardened 40Cr (45-50 HRC) or carburized 35CrMo.

Cyclic Loads (e.g., vibrating screen pins): Spring Pins (absorb vibration) or Grooved Pins (distribute stress).

3. Assess Environmental Conditions

Corrosive Environments (marine, chemical): 316L Stainless Steel (resists chlorides) or Dacromet-coated carbon steel (1000 hr salt spray).

High-Temp Environments (>400°C): Inconel 718 or 35CrMo with aluminized coating (oxidation resistance up to 800°C).

Cleanliness Requirements (food, pharmaceutical): Polished Stainless Steel pins (Ra0.8μm finish) to prevent contamination.

4. Match Installation Method

Interference Fit (permanent): Parallel Pins (H7/s6), requires precise hole tolerance control.

Clearance Fit (removable): Spring Pins (radial tension) or Grooved Pins (groove compression), easing assembly.

5. Ensure Standard Compliance

Automotive: Prioritize IATF 16949 compliance, recommend surface treatments per VDA standards (e.g., Zn-Ni alloy plating).

International Projects: Design per ISO 2338 (Parallel Pins), ISO 8739 (Split Pins), provide CE certification.

Application Solutions: From Industrial Manufacturing to Essential Sectors

As a Pins manufacturer in china, we have supplied over 1 billion pins to automotive, construction machinery, rail transit, energy, and other sectors. Here are typical solutions:

1. Automotive Manufacturing

Need: Engine block & crankcase, resistant to oil, high temp (150°C), repeated assembly.

Solution: 40Cr material, hard chrome plated (20μm), Parallel Pin (h8 tolerance), quenched/tempered (28-32 HRC), service life ≥100,000 cycles.

2. Construction Machinery

Need: Excavator bucket-arm connection pin, withstands 200kN impact, harsh conditions (mud, sand, vibration).

Solution: 35CrMo alloy steel, carburized & hardened (55-60 HRC), Grooved Pin design (disperses impact stress), includes lubrication hole.

3. Rail Transit

Need: High-speed train bogie traction rod locking pin, resistant to low temp (-40°C), high fatigue (10^7 cycles).

Solution: 304L Stainless Steel (excellent low-temp toughness), Split Pin + lock washer combo, 1500 hr salt spray resistance, fatigue strength ≥300MPa.

4. Energy Equipment

Need: Wind turbine yaw brake disc connection pin, corrosion resistant (offshore salt spray), high reliability (20-year maintenance-free).

Solution: Hastelloy C-276 (seawater corrosion resistance), Shear Pin design (fracture load 2x working load), 3rd-party salt spray test report provided.

Quality Assurance: Full Process Control from Manufacturing to Delivery

Material Traceability: Each batch includes mill certificates traceable to heat number, composition.

Process Control: Key processes (heat treatment, surface treatment) use smart monitoring (temp, humidity, time), SPC ensures consistency.

Testing Regime: Equipped with CMMs (±0.005mm accuracy), hardness testers (Rockwell/Vickers), salt spray chambers (simulates 1000 hrs), ≥5% batch sampling.

Certifications: ISO 9001, IATF 16949, API Q1 certified. Provide material certs, mechanical test reports, 3rd-party inspection certificates.

Conclusion

Though small, pins are the “nerve endings” of mechanical connections. Grounded in material science, driven by application needs, and supported by precision manufacturing, WJ Fastener provides pin products that “understand the application.” Whether for standard positioning or extreme conditions, our expertise ensures every connection is more reliable and longer-lasting.

If you are looking for Pins manufacturer in china, we look forward to partnering with you, defining quality through details, and empowering your equipment with our specialization.
